IDP31-215W Bezel-less Widescreen Touch Monitor for Outdoor Kiosk Applications

IDP31-215W

Outdoor Kiosk Display Solution Quick Guide
- Guaranteed Ultra-High-Brightness and Superior Color Solution

  Advantech's IDP31-215W display series leverage 1200nits high-brightness LCDs capable of clear visibility in direct sunlight to produce excellent solutions for outdoor applications.
Large Screen

16:9 widescreen aspect ratios are the standard size for most high-definition computer monitors and televisions. It delivers maximum video image performance to signage solutions.
- IDP31-215W
Easy Integration

IDP31-215W can be used in either portrait or landscape modes using a VESA mount. This solution’s metal chassis creates a rugged and stable platform for a wide range of applications and solutions.

Product Specifications

Display Features	Specs
Model	IDP31-215WPK2HIC1
Backlight	LED
Resolution	1920 x 1080	Full HD
Brightness	1200 cd/m2	Measured at typical operating voltage
Viewing Angle	89°/89°/89°/89°	Left/Right/Up/Down
Max Colors	16.7M
Contrast Ratio	1000:1
Response Time	22ms
Backlight Lifetime	50,000 hours
Touchscreen Type	Projected Capacitive
Surface Hardness	7H
Transparency	85%
Cover Glass Thickness	1.8 mm
Operating Temperature	0°C ~ 55°C
Storage Temperature	-20°C ~ 60°C
Humidity	90% RH @ 40°C	Non-condensing

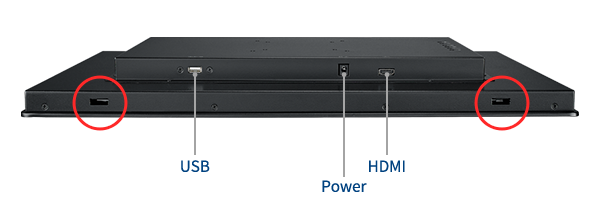

Input/Output	1 x HDMI, 1 x 12 VDC Jack, 1 x USB	USB is reserved for the connection to enable touch only
OSD	Keys: Menu, Up, Down, Auto Adjust, Monitor Power on/off Menu Functions: Brightness, Contrast, Screen Settings, Color Temp, Language OSD settings, Recall, Auto Adjust
Power Consumption	43W
Power Input	12V_DC
Mounting	VESA/Panel mount
IP Rating	Front IP67
Weight	5.4 kg
