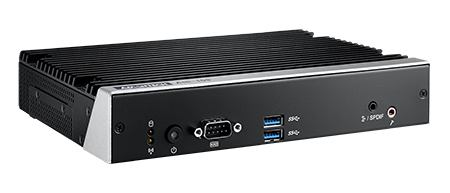

EI-A100-S61A1 AIR-100 with Faceview

  1. Intel® Atom™ E3950 and Intel® Movidius Myriad X VPU MA2485 x1 built-in
  2. Integrated NVIDIA® GeForce® GT 1030 graphics for ultra HD playback
  3. Intel® OpenVINO™ toolkit supported
  4. Integrated with Edge AI Suite
  5. Quad independent HDMI outputs
  6. Reserve TPM 2.0 for security application
  7. Signage content management software built-in
  8. Low power & fanless signage player
Please visit via PC to place order/quote

US$1,263

Make an inquiry Add to Quote Add to Cart
Specifications
Category
Attribute
Value
Display
Chipset
NVIDIA® GeForce GT 1030
Display
Output

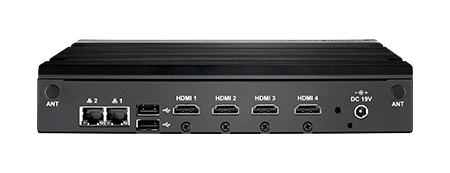

2 x HDMI 1.4, 2 x HDMI 2.0
Display
Resolution
HDMI 2.0: up to 3840 x 2160 @ 60Hz ; HDMI 1.4: up to 3840 x 2160 @ 30Hz (CEC support)
Display
Video format
Decode for H.264,VC-1,WMV9,H.265/HEVC,VP8,VP9,JPEG/MJPEG,MPEG2(only for Yocto project Linux) ; Encode for H.264,MVC,WMV9,H.265/HEVC,VP8,VP9,JPEG/MJPEG
I/O
Audio
1x audio phone jack for Mic-in, 1x SPDIF, supports jack sense via OS setting
I/O
Mini-PCIe (Internal)
1 x Full Size MiniPCIe support mSATA; w/SIM holder, support WWAN module (USB interface)
I/O
Serial
1 x COM (RS-232)
I/O
USB2.0
2
I/O
USB3.0
2
Memory
Max. Capacity
16 GB (up to 8 GB per SODIMM)
Memory
Technology
4GB DDR3L 1600MHz memory built in
Processor
CPU
Intel Atom® x7-E3950 Processor
Storage
SSD
64G SATA III SSD Built In
Operating System
Linux
Yes (by Project)
Operating System
Microsoft Windows
Pre-installed Windows 10
Ethernet
Connector
RJ45 x 1
Power Requirement
Input Voltage
19V DC-in (ATX/AT mode, default ATX)
Certification
Electromagnetic
CE, FCC Class B, BSMI
Certification
Safety Certifications
UL, CB, CCC, BSMI
Physical Characteristics
Dimensions (W x D x H)
220 x 40 x 150 mm
Physical Characteristics
Mounting
Easy mounting kits for LCD or Plasma
Physical Characteristics
Weight
1.7 kg
