FPM-217-R8AE 17" XGA Ind. Monitor,w/Resistive TS

  1. 17" SXGA TFT LED LCD with 30,000 backlight lifetime
  2. Direct HDMI, DP and VGA input interfaces
  3. Anti-glare screen with tempered glass
  4. Robust system with Die-casting aluminum chassis and IP66-rated aluminum alloy front bezel
  5. Visit IoTMart @ https://bit.ly/49pY0ID
  6. Contact our local sales for any clarification
Certifications
CE CE CE CE CE CE CE
Please visit via PC to place order/quote
Make an inquiry
Please Select Purchase Qty X
Please Select Purchase Qty X
Features

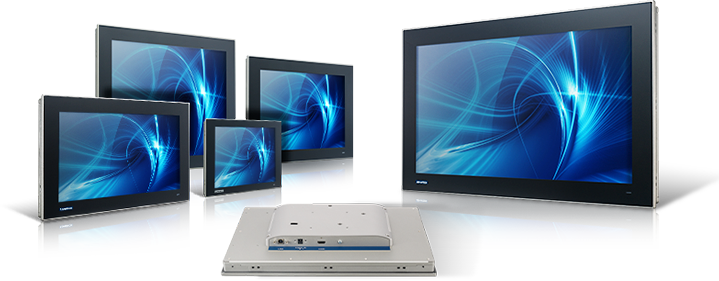

New Generation of industrial Monitors
Premium performance at an affordable price

Introducing Advantech’s new generation of industrial monitors – the FPM-200 series – aimed at providing quality-assured, rugged display solutions at an affordable price. Featuring an IP66-rated, industrial-grade design with true-flat touch panel, FPM-200 displays are extremely durable in order to withstand operation in challenging industrial environments. Meanwhile, the intuitive controls provide an exceptional usage experience, ensuring easy operation for wide range of applications.

Feature Highlights
Industrial-Grade Design
  • LCD backlight with 50,000-hr lifetime
  • Supports 24/7 operation
  • Shock, vibration, and noise resistant
  • IP66-rated front panel
  • Die-cast aluminum housing
Intuitive Operation

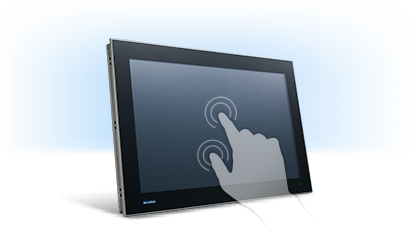

  • Multi-touch resistive/P-CAP control
  • True-flat touch screen
Assured After-Sales Support

With an extensive global network in over 90 cities and 27 countries worldwide, Advantech has the resources to provide prompt localized customer support.

  • Onsite service
  • Collection service
  • Fast repair service
  • Upgrade service
Long-Term Availability
  • Cut-out dimensions maintained for at least 10 years
  • 2-year warranty
Easy Installation
  • Slim and lightweight design
  • Multiple mount options for flexible installation
Certifications

CE

FCC

UL

CCC

BSMI

Product Specifications

Video

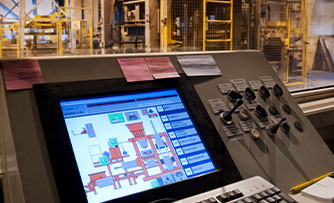

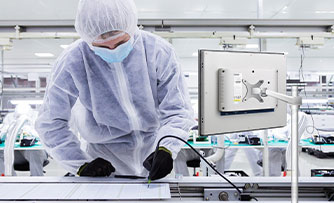

Target Applications

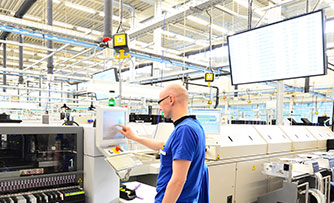

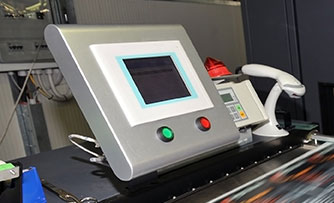

Machine control

Process automation

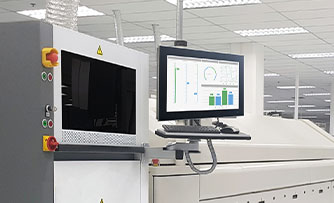

Shop floor monitoring

eSOP workstation

Control room

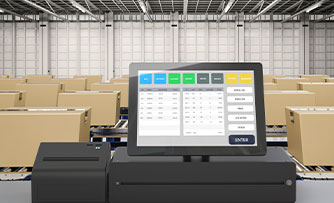

Warehouse management

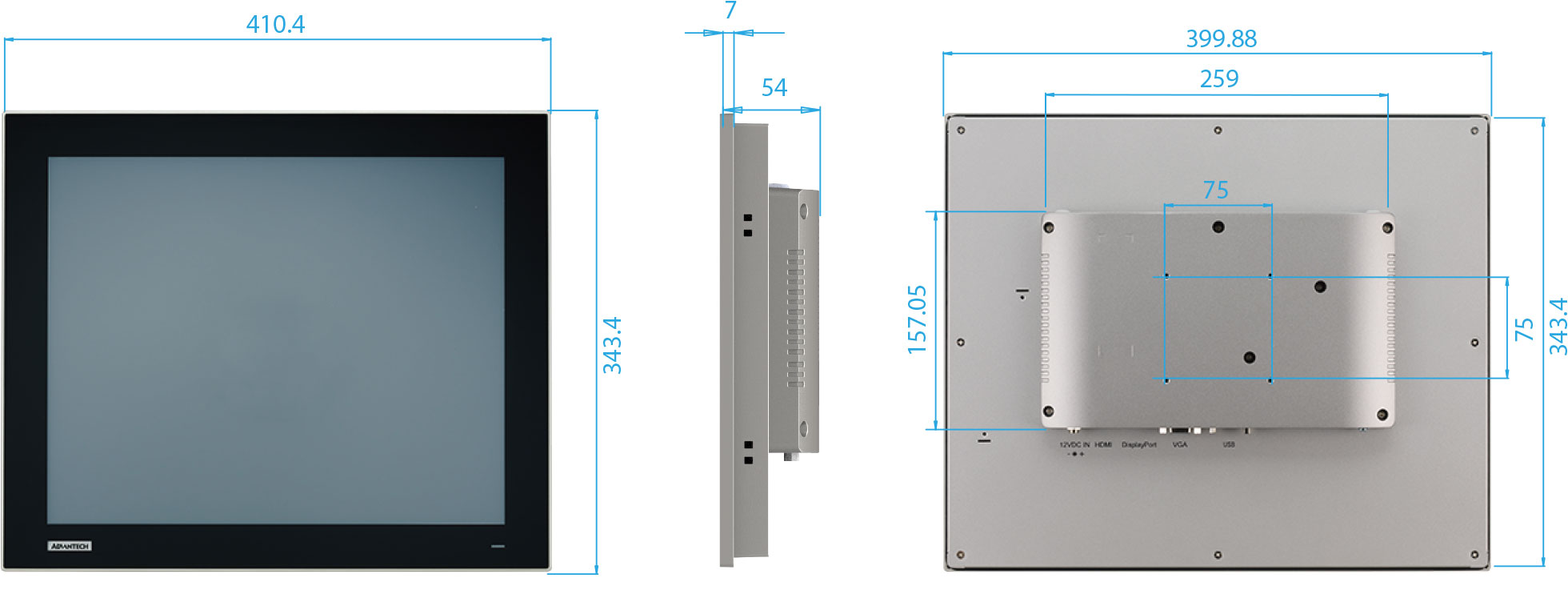

Dimensions
Unit: mm
FPM-217

Panel cut-out dimensions: 401.3 x 334.8 mm (15.8 x 13.18 in)

Installation

Panel

Wall

Desktop

VESA

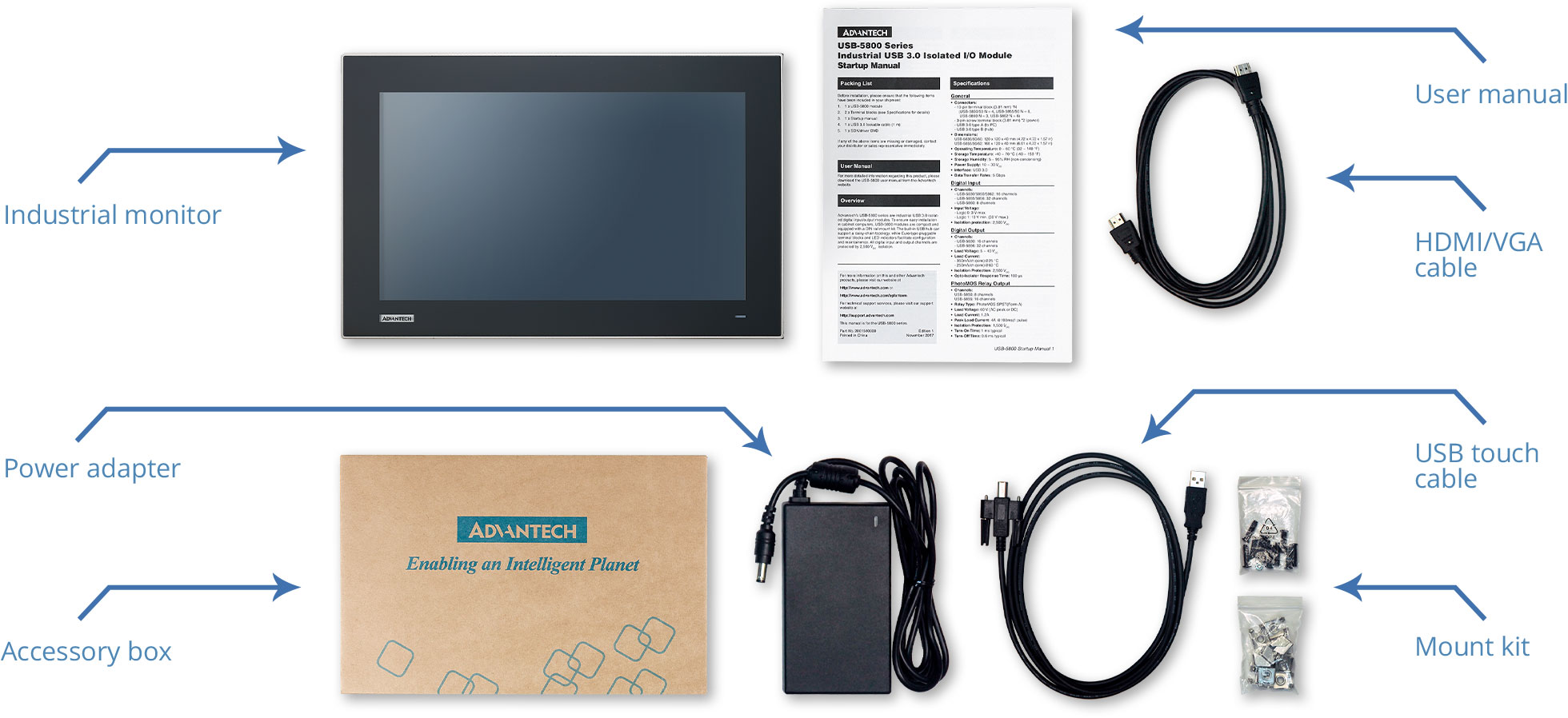

Inside the Box
Specifications
Category
Attribute
Value
Hardware
Certification
CB, UL, CE, FCC Class A, CCC, BSMI
Hardware
OS Support
Microsoft® Windows Vista, Microsoft® Windows 7, Microsoft® Windows 8,Microsoft® Windows XP, Microsoft® Windows XPe, Microsoft® Windows CE, Linux,Microsoft® Windows 10 LTSB
Hardware
Power Consumption
15 W + 20%
Hardware
Power Input
12 VDC
Hardware
Video Port
HDMI, DP, VGA
LCD Display
Backlight Life (hrs)
50,000
LCD Display
Display Size
17"
LCD Display
Luminance (cd/m2)
250
LCD Display
Max. Resolution
1280 x 1024
LCD Display
Viewing Angle (H/V°)
170/160
I/O Interface
Power Connector
1 x Lockable DC Jack
Environment
Ingress Protection
Front Panel IP66
Environment
Operating Temperature
0~50 °C (32~122 °F)
Environment
Storage Humidity
10~95% RH (non-condensing)
Environment
Storage Temperature
-20~60 °C (-4~140 °F)
Environment
Vibration Protection
1 Grms, random
Touchscreen
Touch Type
5-wire resistive
Mechanical
Dimension (W x H x D)
410.4 x 343.4 x 54 mm
Mechanical
Enclosure
Die cast magnesium alloy, Die-casting aluminum
Mechanical
Mounting
Stand, Wall, VESA, Panel
Mechanical
Weight (Net)
5.4 kg (11.90 lb)
