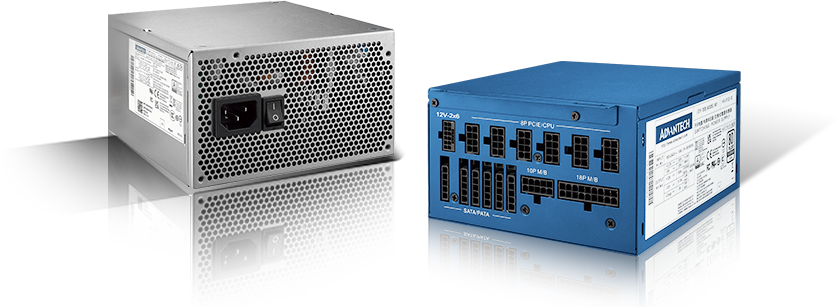

High-Wattage ATX 3.1 Power Supplies

High-Performance Power Solutions for the AI Era

Advantech introduced the IPS-X ATX 3.1 power supply series for diverse applications requiring ultra-high-performance graphics cards for enhanced computing capability. IPS-X offers 850W and 1200W ATX power solutions for cutting-edge AI, high-performance computing (HPC), virtual reality, and 4K displays with high dynamic range (HDR) capabilities.

Application

In response to market trends, Nvidia and AMD are constantly introducing ultra-high-performance graphics cards. Simultaneously, Intel has launched the latest 12th, 13th, and 14th Gen Intel® Core™ desktop CPUs, emphasizing the importance of power supplies that balance high power consumption with efficiency. Consequently, Advantech released the IPS-X series to meet various applications and industry demands, spanning cutting-edge technology to critical infrastructure solutions.

Artificial Intelligence
Improved AI Acceleration Features

Intel's integration of specialized AI acceleration features, such as Intel Deep Learning Boost (DL Boost) technology, into its CPUs, has revolutionized AI computing. When paired with the latest ATX 3.1 power supply units, these advancements propel AI applications to unprecedented levels of performance and efficiency. The ATX3.1 PSU, engineered to complement AI acceleration features seamlessly, acts as the backbone of AI infrastructures. Its robust power delivery and stability ensure lightning-fast processing of AI workloads, including neural network inference. By leveraging hardware acceleration, the ATX 3.1 PSU drives impactful advancements in AI-driven applications while minimizing power consumption and cost.

High Performance Computing
Experience the Power of Efficiency

In the world of high-performance computing (HPC), every watt matters. That's why energy efficiency is a top priority, especially in expansive computing clusters and data centers where operating costs can soar. When it comes to powering these cutting-edge systems, your choice of PSU is paramount. Enter the ATX 3.1 PSU – meticulously engineered to not only deliver robust power and stability but also to maximize energy efficiency to unprecedented levels. Seamlessly integrated with the latest Intel CPUs and their advanced AI acceleration features, our ATX 3.1 PSU doesn't just power your systems; it supercharges them. Join the forefront of innovation and elevate your AI-driven technologies with the ultimate power solution.

Edge Computing
Edge Computing Solutions

In edge computing scenarios where reliability, efficiency, and compact form factors are crucial, the ATX 3.1 PSU excels. Its compact design makes it perfectly tailored to power edge systems deployed in remote locations, IoT devices, and edge computing nodes, where chassis space constraints are common. With its advanced features and seamless integration with Intel CPUs' AI acceleration capabilities, it enables real-time data processing and AI-driven insights at the edge, all while optimizing energy usage and minimizing space footprint.

Product Performance
Meet the ATX 3.1 Standard

Advantech IPS-X series is fully compatible with Intel ATX 3.1 which supports high power peak load of up to 200% of the power supply’s rated power for 100 μs. IPS-X64A1K2W-A comes with the latest 16-pin 12V-2x6 connector / cable for PCIe 5.0 graphics cards and peripherals that can deliver up to 600W.

PCIe* AIC and PSU Power Budget used for Peak Power Excursion

Power Excursion % of PSU Rated Size

PSU ≤ 450 Watts & PSUs without 12VHPWR Connector

Power Excursion % of PSU Rated Size

PSU > 450 Watts & 12VHPWR Connector present

Time for Power Excursion (TE) Testing Duty Cycle
100% 100% Infinite -
110% 120% 100 ms 50%
135% 160% 10 ms 25%
145% 180% 1 ms 20%
150% 200% 100 µs 10%

NOTE

Peak Power defined in this table correspond to Platform Level Power Budgets described in Table 3-2 if CPU or Rest of Platform power is reduced from Table 3-2 to reduce PSU size, then custom Power Excursion % of PSU rated size must also be calculated.

12V-2x6 Cable Plug Connector
12-Pin

Each Power Pin is made of high-quality copper alloy and supports current rating of up to 9.2A at + 12 VDC with minimum resistance resulting in excellent conductivity.

4-Pin

These four smaller contacts provides more reliable, durable design and carry more secure electrical connection.

80Plus Certification

In response to this market trend, Nvidia and AMD are constantly introducing ultra-high-performance graphics cards. Advantech released IPS-X series to meet demand for various applications and industries, spanning cutting-edge technology to critical infrastructure.

Compact Design

Advantech IPS-X series provides compact design specially in depth. IPS-X62A850W-A offers an 850W output rating and achieves high power density with a compact depth of only 140mm while IPS-X64A1K2W-A supports 160mm in depth with 1200W capacity.

Fully Modular (IPS-X64A1K2W-A)

The Advantech IPS-X64A1K2W-A provides fully modular cable management features, allowing you to connect only the cables necessary for your system. This helps save space and improves airflow inside the chassis.

Recommended Products
Empowering versatile applications with Arm-based ultra-compact modules

IPS-X62A850W-A

80+ GOLD PS/2 SPS 850W ATX
  • Intel® ATX 3.1 compliant
  • High-efficiency 80 Plus Gold rating
  • Compact Design with shorter 140 mm in depth
  • Ultra quiet via smart fan silence mode (<20% load)
  • Industrial-grade working temperature up to 50°C
  • Ultra durable and stable with Japanese capacitors

IPS-X64A1K2W-A

80+ Platinum PS/2 SPS 1200W ATX
  • Intel® ATX 3.1 compliant
  • High efficiency 80 PLUS Platinum certified
  • Compact Design with shorter 160 mm in depth
  • Fully modular design with cable management
  • Supports PCIe 5.0 GPU with 12V-2x6 connector
  • Industrial-grade working temperature up to 50°C
  • Ultra durable and stable with Japanese capacitors
